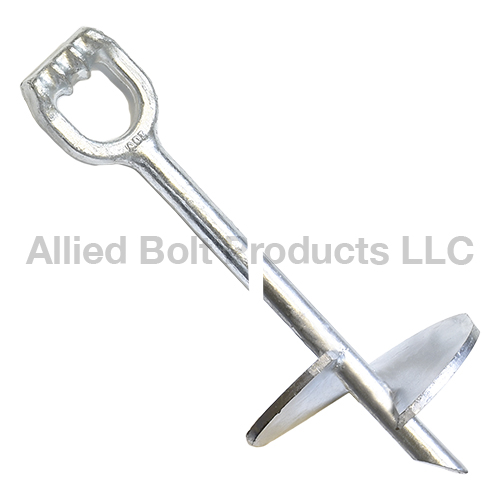

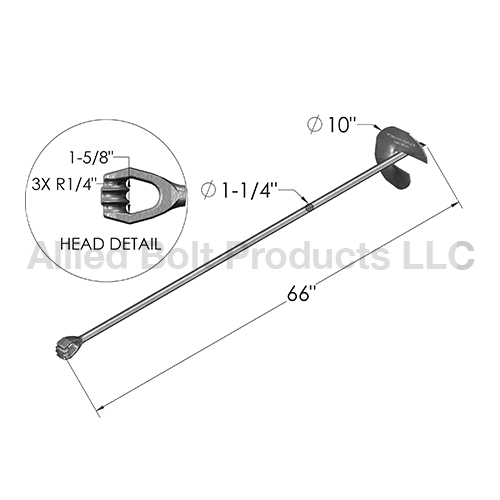

AB 1-1/4″ X 66″ TRIPLE STRD NO-WRENCH SCREW ANCHOR 10″ HELIX
Allied Bolt 1168 1-1/4″ X 66″ NO-WRENCH SCREW ANCHOR 10″ HELIX
Additional information
| Notes |
|---|
Unit of measure: EA
-Used for securing up to 3 guy wires at a utility pole.
-Anchors are installed by simply turning anchor into ground. No Wrench Anchors may be driven by hand or with power equipment.
-Eye dimensions are the same as Anchor Rods.
-Screw anchors consist of an unthreaded triple eye rod with an angled point, and a firmly welded helix.
-Hot dip galvanized to meet ASTM Specification A123.
-Holding strength per soil class for 1-1/4″ rod:
-Soil Class 5: 13000 lbs
-Soil Class 6: 10000 lbs
-Soil Class 7: 7000 lbs
-Typical working torque is 2300 ft lbs.
